User Guide

Creating an Account

1/2

If you’re using ActivForce for the first time, you will need to create an account. Enter your email address, choose a password, and press “Register”.

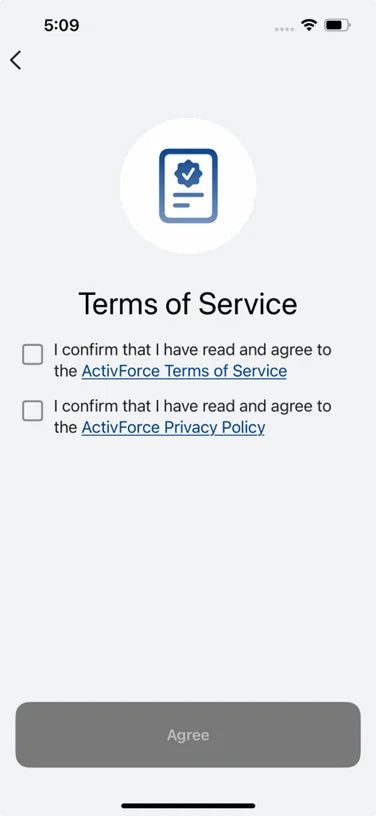

Review and accept the terms and conditions as well as the privacy agreement. This takes you to the Onboarding where you can select default test settings.

Selecting Default Settings

If it is your first time using the app (whether you’re a new user or an existing AF2 user), you will see a "Welcome to ActivForce" screen that will lead you to set the default test settings.

1/4

Started” to proceed and configure the test settings. These can be updated at any time in the “Test Settings” menu in the app.

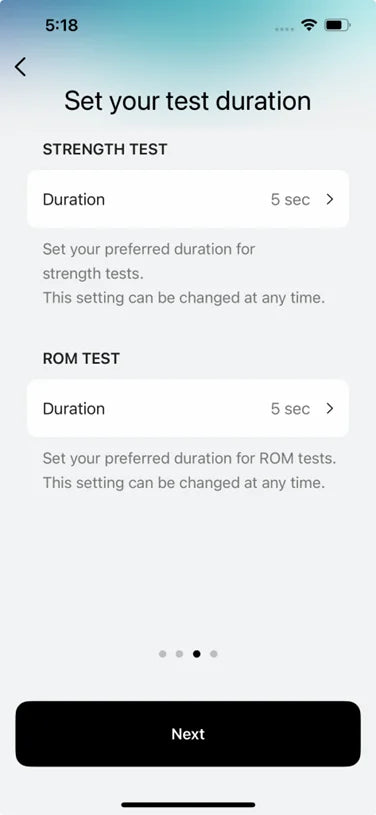

First, you can select the test duration individually for Strength and Range of Motion measurements. The mobile application allows you to select a duration between 1 and 60 seconds.

After that, you need to set your preferred unit of measurement: Imperial (lb), Metric (kg), Newton (N).

Finally, the app will ask you if you would like to allow the sharing of anonymous data to help improve ActivForce.

Signing In

If you already have an ActivForce account, enter your email address and password to sign in. If you don’t remember your password, click on the “Forgot password?” link. The onboarding will be shown the first time you sign in to the app.

Home Screen

1/4

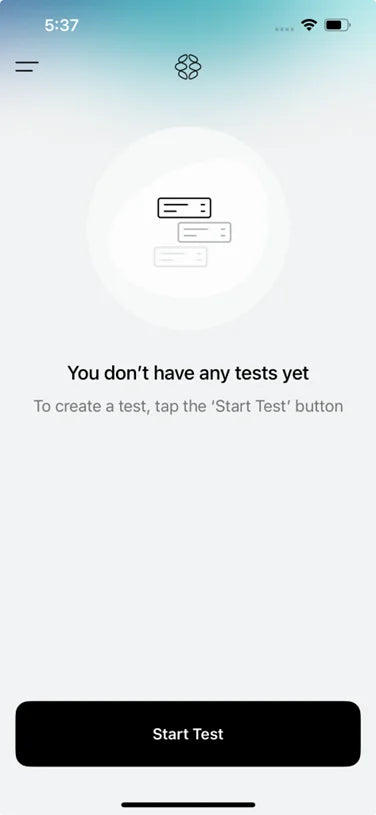

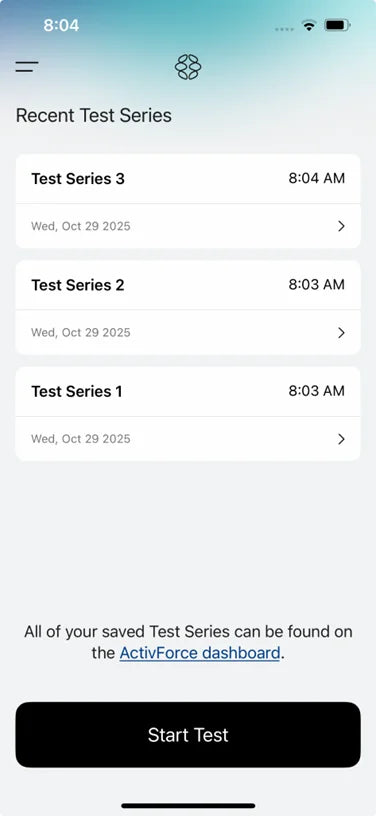

Upon signing in, you will see the ActivForce home screen.

Measurements can be started by tapping the “Start Test” button. Before each measurement, the test type (Strength or ROM) and other Test Configuration properties can be set.

By opening the sidebar menu, you can customize various settings such as test duration, measurement units, the app’s theme and language, and others.

For quick access, the home screen will show the last three saved reports.

A link to the ActivForce dashboard which contains all test reports saved from the app is also presented on the home screen.

Test Configuration

Upon tapping “Start Test” on the home screen, the user is presented with the option to choose the test type - Strength or Range of Motion. Other test configuration properties can also be set, like the test name, side and optionally joint, movement and position.

1/2

The test name is automatically populated with the number of the test in the current test series, but it can also be customized to the user’s preferences (up to 64 characters).

In the “Optional Settings” section, the user can also choose Joint, Movement and Position, which will generate a test name (if the default name wasn’t changed by the user before that) and the associated test illustrations will be added to the report.

The test side can be selected - Left, Right or N/A (if no side is applicable).

Tapping “Start Test” on the Test Configuration will open the device connection screen (if no ActivForce 2 device is currently connected) or the test screen where the measurement can be started.

Strength Measurements

To perform a Strength Test, tap on “Strength” in the Type section of the Test Configuration screen. Select which side you want to test - Left, Right or N/A (if no side is applicable).

1/4

Tap on “Start Test”.

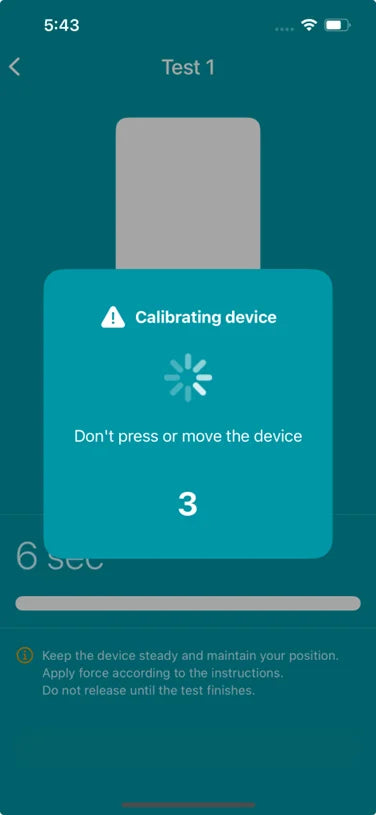

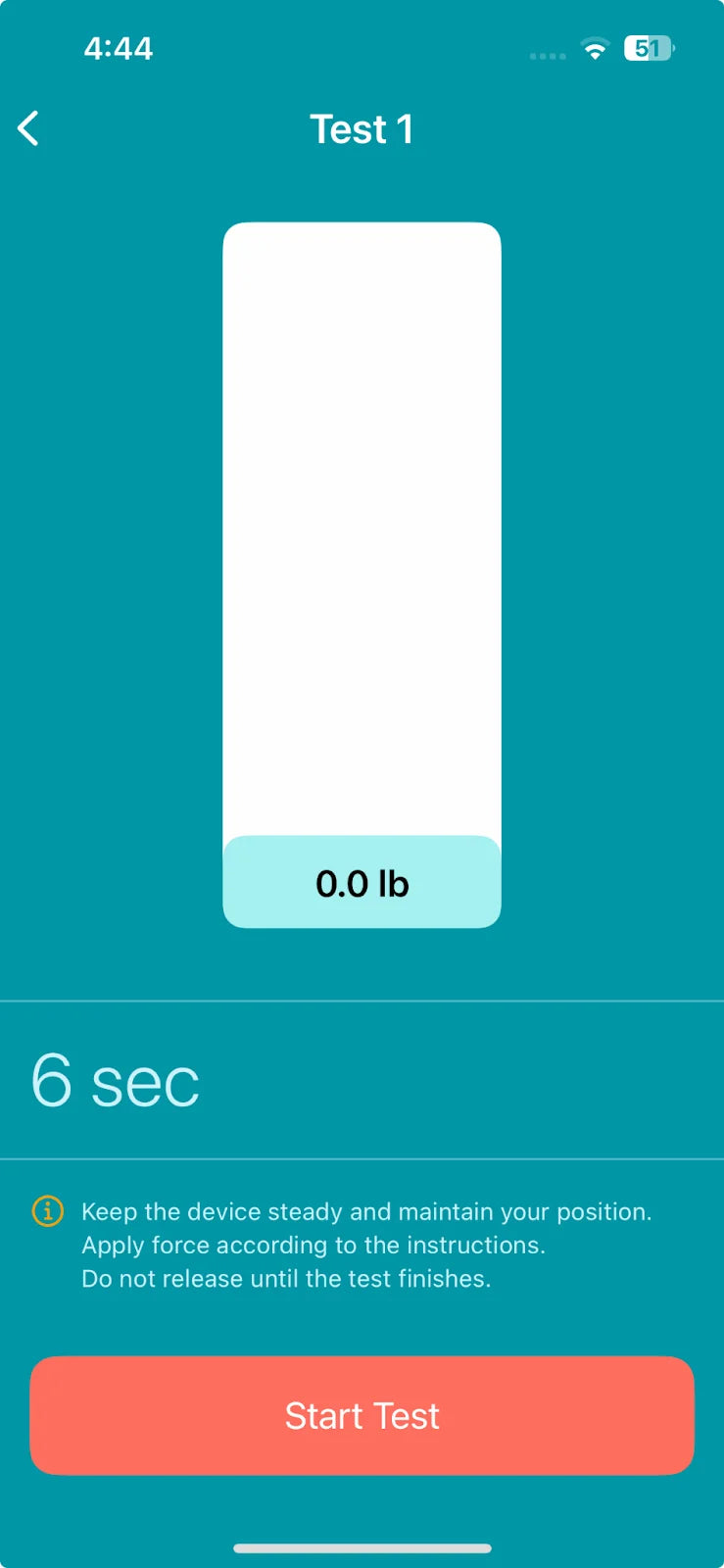

Once you reach the test screen, tap "Start Test" to begin the Strength measurement. A three-second calibration phase will start. Do not press or move the device during calibration.

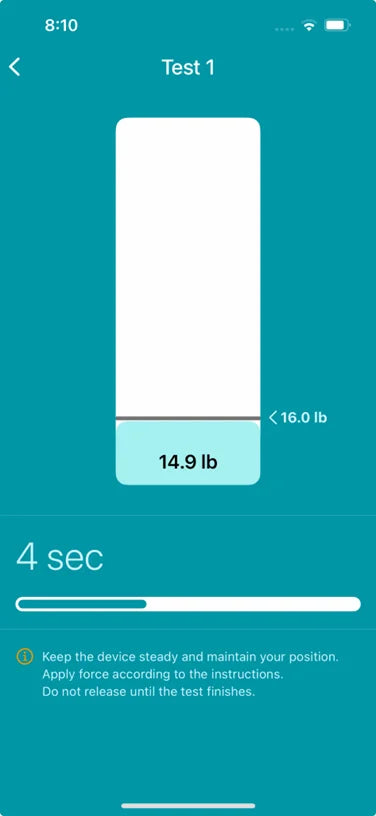

Once the countdown timer ends, the test will begin and you can start applying force to the device. The applied force will be displayed on the vertical bar along with a horizontal target showing the currently reached peak force.

The test duration depends on the settings chosen in the “Test Settings” screen. The default is set to six seconds.

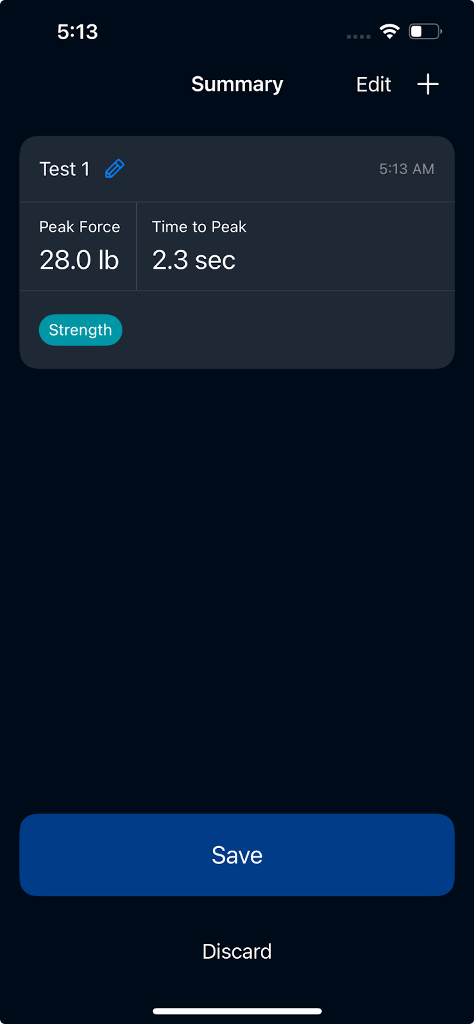

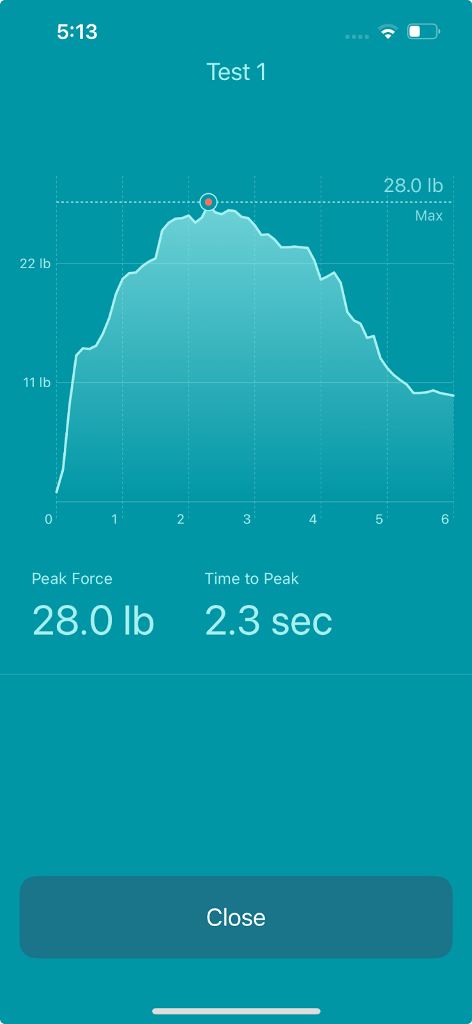

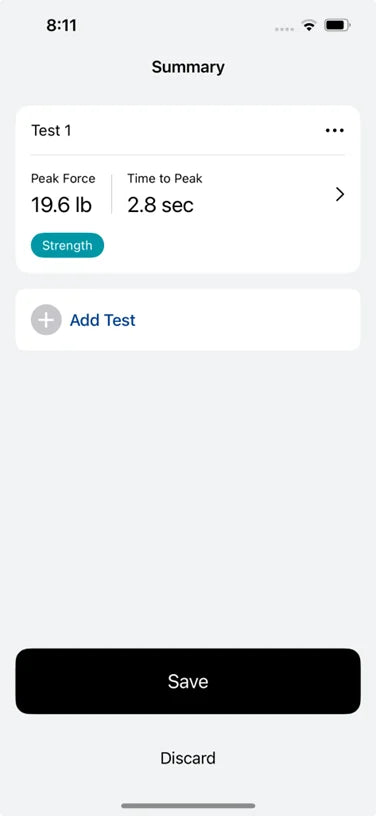

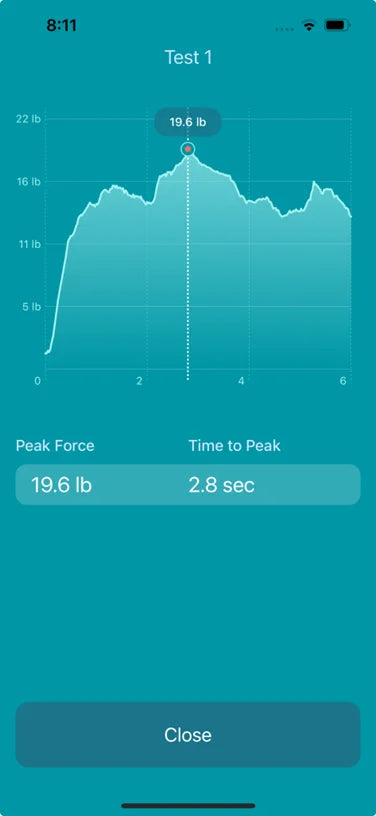

After the strength test is completed, a Summary screen will be shown which will contain the Peak Force and the Time to Peak (in seconds), which is how long it took to reach the Peak Force for that specific test.

Range of Motion Measurements

To perform a Range of Motion Test, tap on “ROM” in the Type section of the Test Configuration screen. Select which side you want to test - Left, Right or N/A (if no side is applicable).

1/5

Tap on “Start Test”.

Once you reach the test screen, tap "Start Test" to begin ROM measurement. A three-second calibration phase will start. Do not press or move the device during calibration.

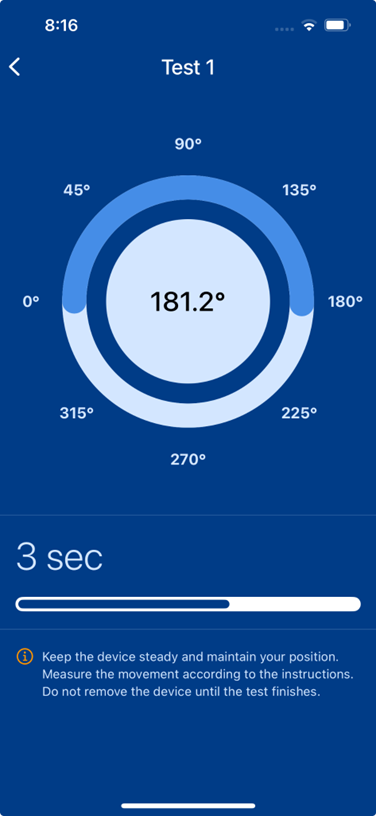

Once the countdown timer ends, the test will begin and you can start rotating the device. The circular gauge displays both your current angle and the maximum angle reached during the test.

The ActivForce 2 device is capable of measuring angles in all three axes. However, only one angle in a single plane of motion should be measured during each test.The test duration depends on the settings chosen in the “Test Settings” screen. The default is set to six seconds.

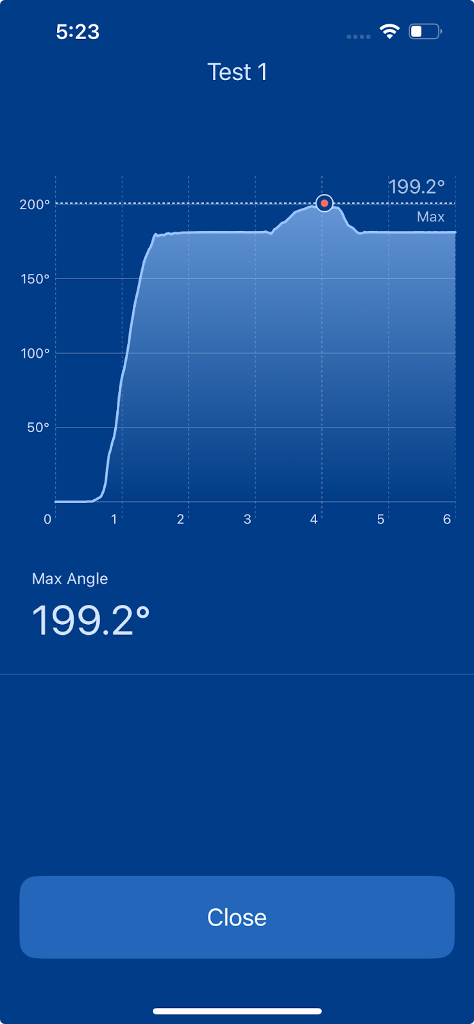

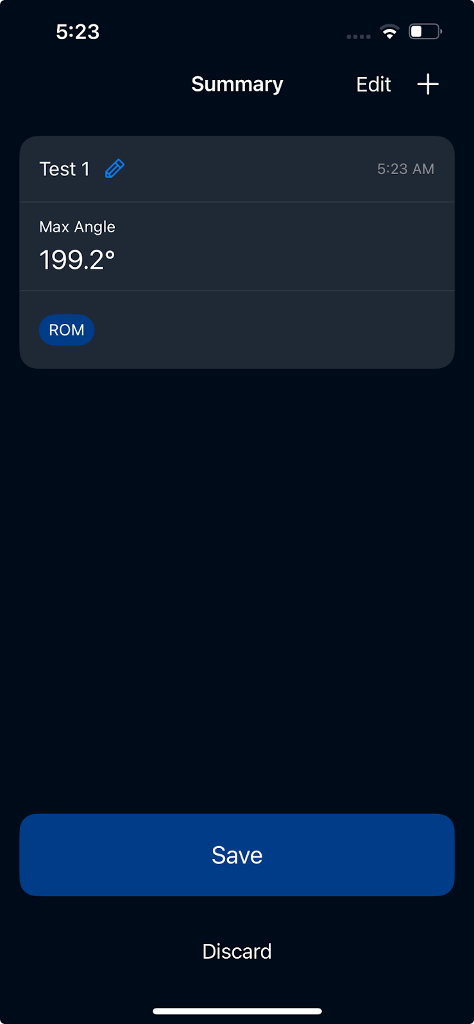

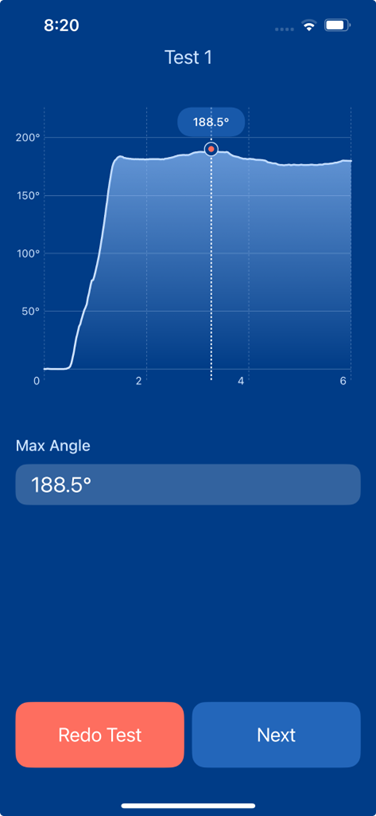

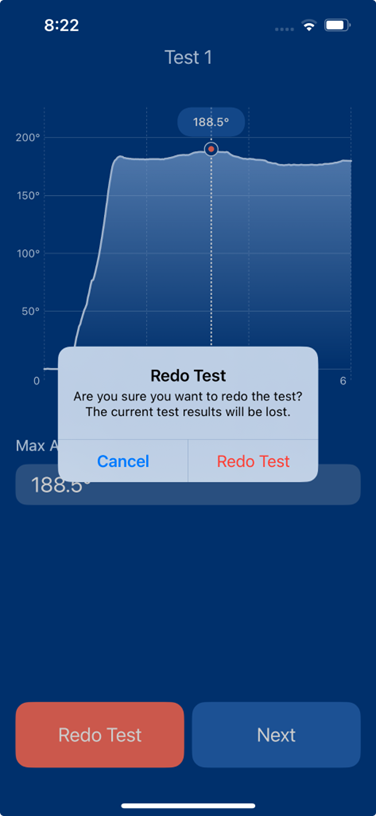

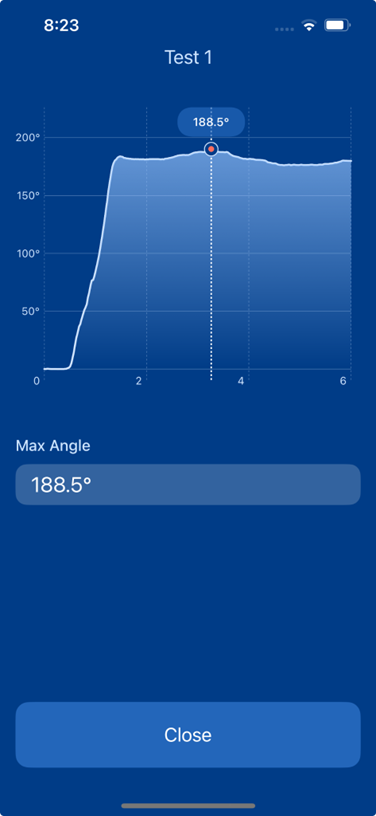

After completing a ROM test, a Summary screen will display the Max Angle reached during the test.

Test Summary

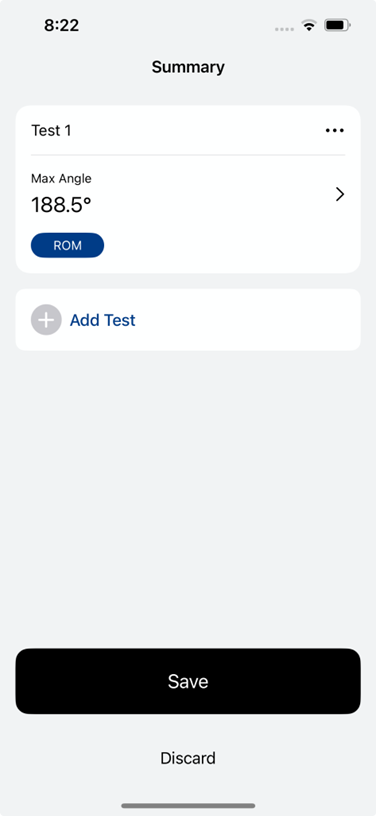

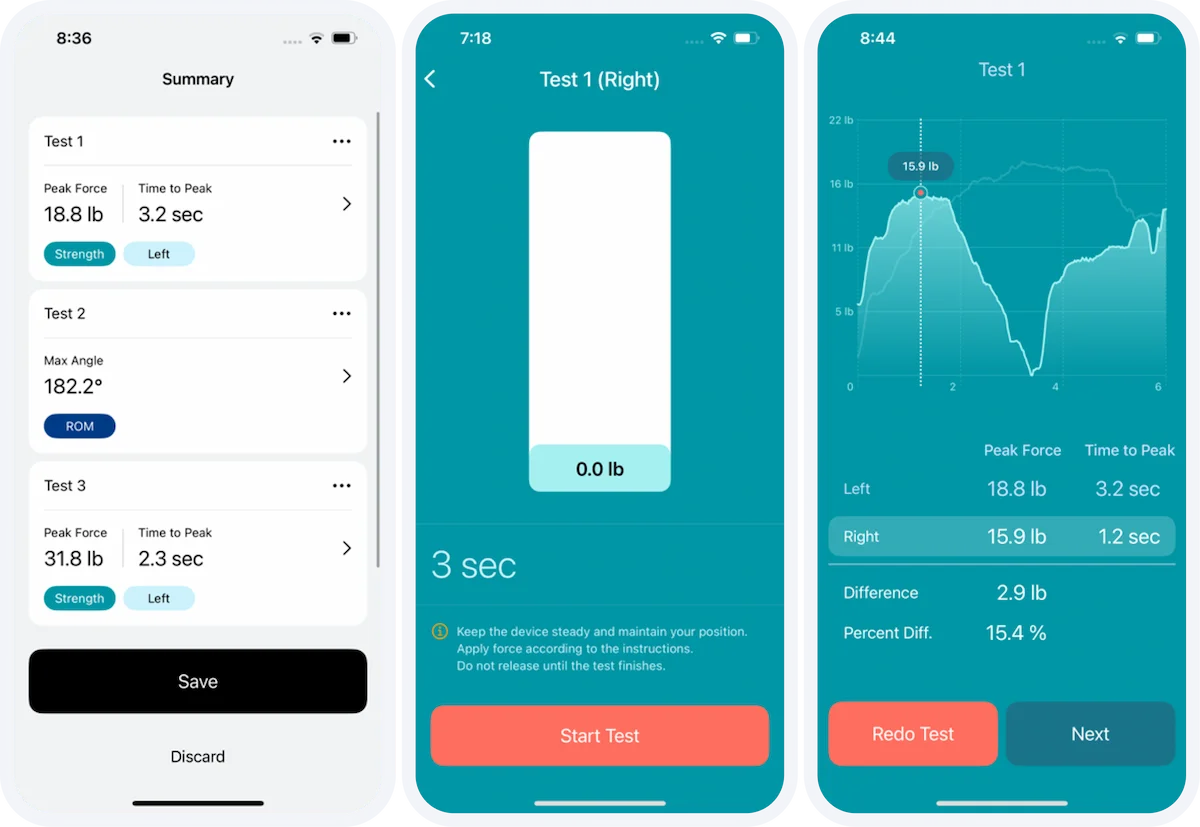

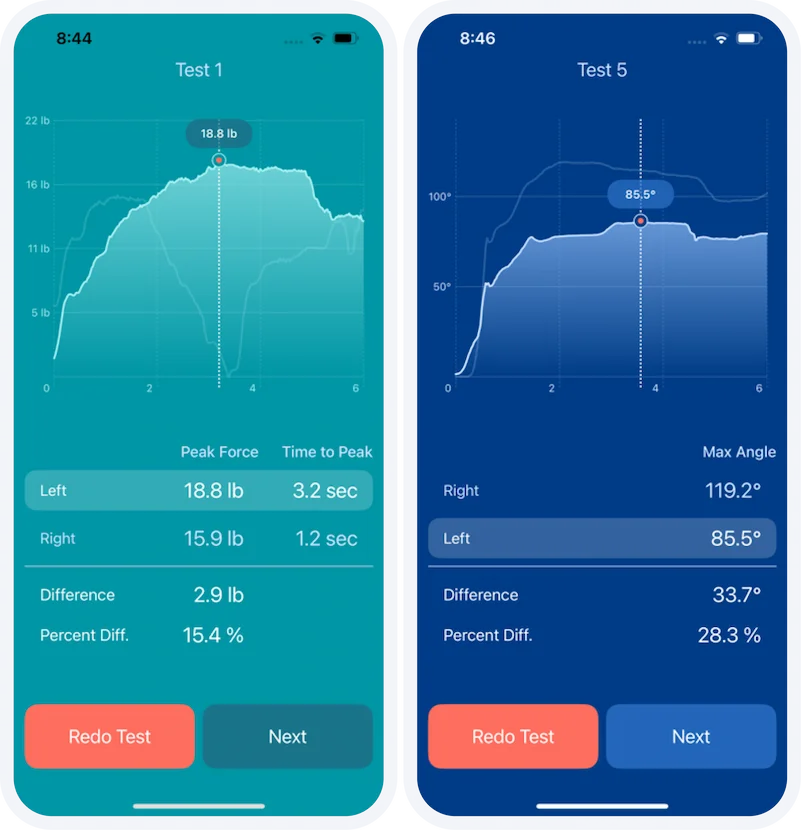

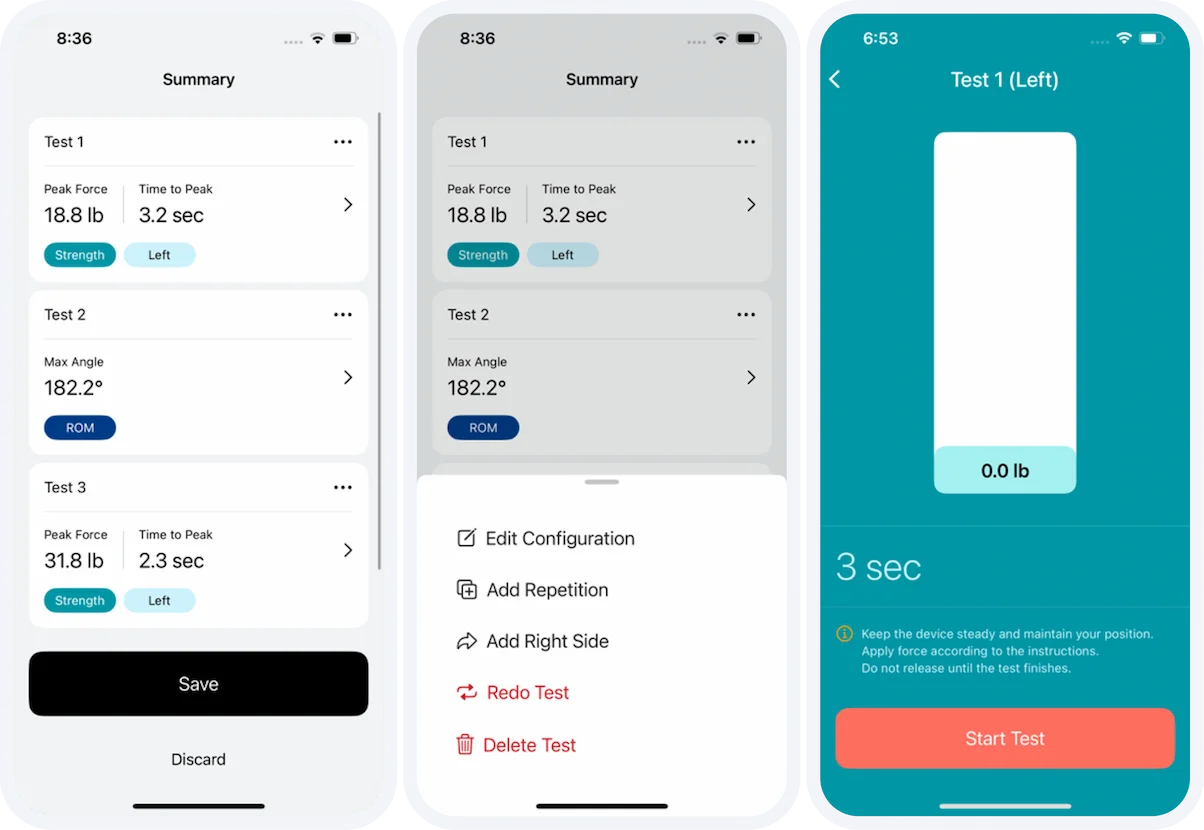

The Test Summary screen displays results from all conducted tests in the same report.

1/6

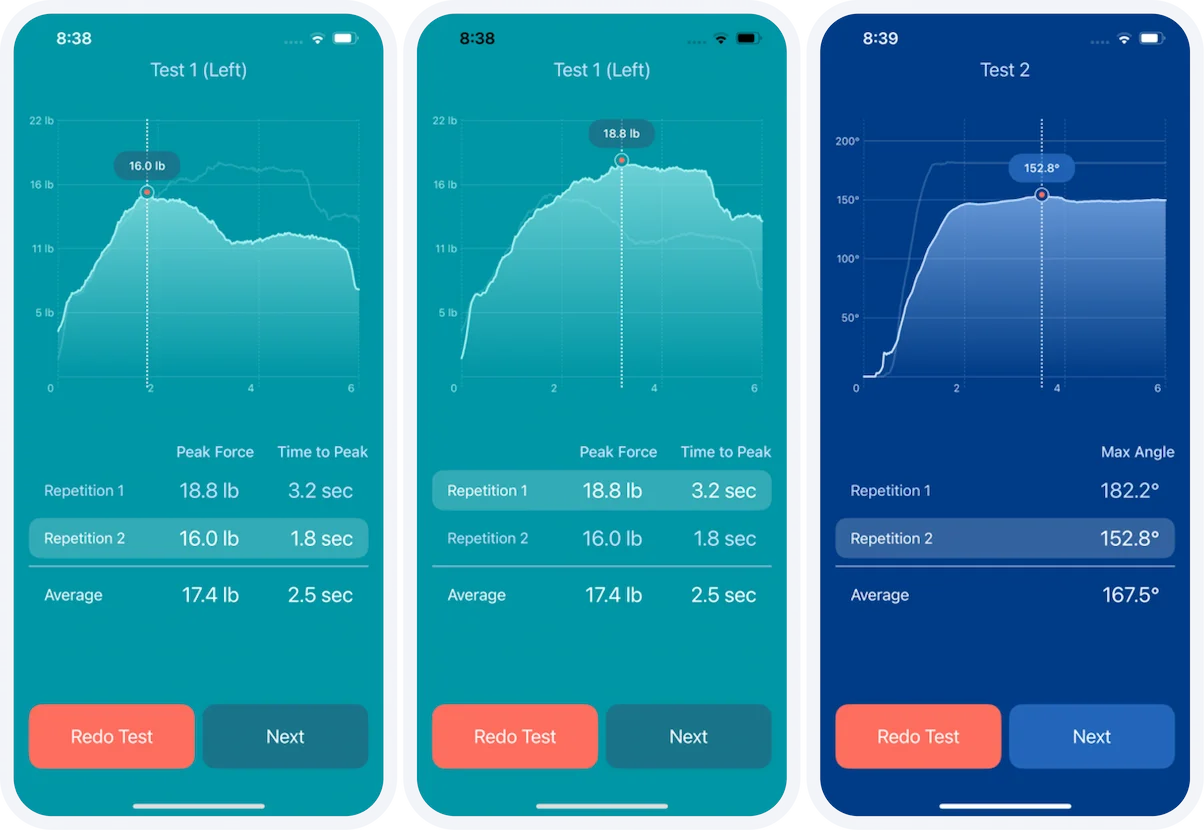

To add a new test to the same report, tap the “+” icon which will open a new “Test Configuration” screen. You can add up to 30 tests in a single report. Tests will appear in the order they were performed.

Test reports can contain data from Strength tests, ROM tests, or a combination of both.

Individual tests can be renamed by tapping on the “rename” icon next to the Test name. After the test is renamed, confirm with the “Save” button.

Tap the "Edit" button to access additional options. You can remove unwanted tests by tapping the "minus" icon next to an individual test and confirming with the "Delete" button on the side. Deleted tests will not appear on the test report when you save your results.

To save the test series, tap the “Save” button on the Summary screen. The Test Series name will be prepopulated but can also be changed. You can also add a Test Subject Identifier to help you find the specific report later.  Tap ‘Done’ to confirm the save.

Note: Please use an anonymized identifier due to privacy and security regulations.

To discard tests from the Summary screen, tap the "Discard" button. After confirmation, the tests will be deleted.

Note: Reports that you do not save will be automatically discarded and cannot be restored.

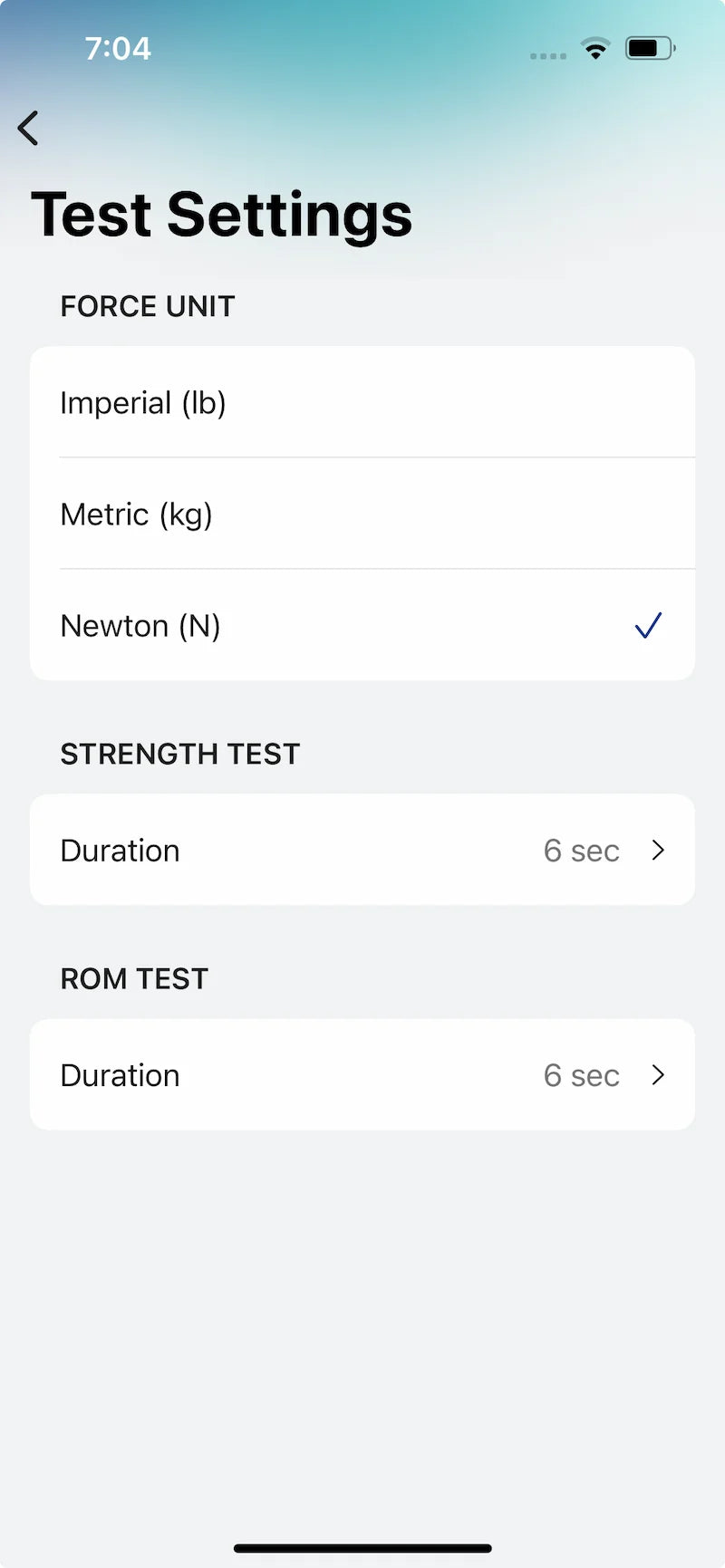

Test Settings

The test settings can be accessed from the Home screen by opening the sidebar menu and selecting “Test Settings”.

Force units for Strength measurements can be set in Imperial (lb), Metric (kg), or Newton (N). Additionally, test durations for Strength and ROM tests can be set separately: the default is 6 seconds, but any duration between 1 and 60 seconds can be selected.

Profile

The profile menu can be accessed from the Home screen by opening the sidebar menu and selecting “My Profile”.

1/2

My Profile screen allows you to:

• Connect and calibrate devices
• Change the app’s theme (Light, Dark or System, which follows the OS preferences)
• Choose the app’s language (English, German, Spanish, French, Italian, Japanese, Korean, Dutch and Portuguese (Brazil))
• Change privacy settings (Data Sharing)
• Contact customer support
• Access other functions

Log out from the current ActivForce account by tapping the “Sign out” button in the sidebar menu. After signing out, the app will return to the welcome screen where you can sign in again.

Using the ActivForce Web Dashboard

The ActivForce web dashboard, available at https://activforce.activbody.com, displays saved force and angle measurement test series. They are saved to the dashboard when you use the “Save” button on the ActivForce mobile application.

1/6

Sign in to the ActivForce web dashboard with the same email and password used in the ActivForce mobile application.

After a successful sign-in, saved test reports will be displayed in the dashboard.

Test reports in the dashboard contain all information recorded during the administration of the test. Each test report includes a graph that visualizes the entire test duration, helping better understand how the test was performed.

An illustration will also be available in the test report if a joint, movement, and position were selected when the test was performed.

Subject details like identifier and weight can be added to each report. When weight is added, the test report card will display an additional Force-Weight Ratio comparison section.

Every saved report can be printed or saved as a PDF by tapping the “Print/PDF” button.

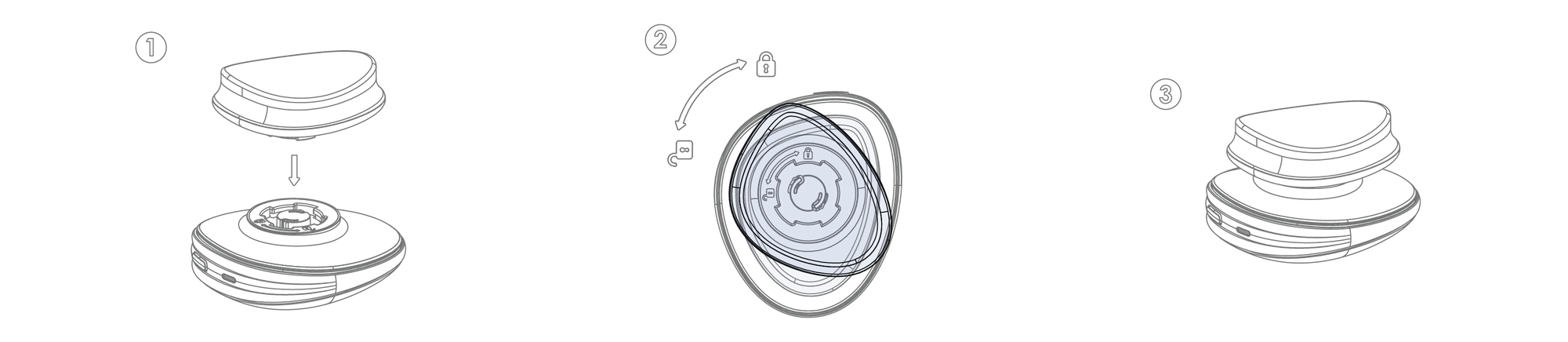

Attaching a Pad to the Device

The locking mechanism is a circle with four wide gaps that securely hold attachments in
place through a twist lock mechanism. To secure an attachment to the ActivForce 2 device:

1. Align the attachment teeth with the locking mechanism gaps.
2. Push the attachment teeth down into the gaps.
3. Twist the attachment clockwise (towards the locked symbol) a full quarter turn.
4. When locked, the attachment will remain in place.

Measuring Force

The ActivForce 2 device measures accurately when force is applied in a perpendicular direction to the large surface areas of the device or an attached pad. Application of the force should be in the center of the surface as much as possible. Direct all force into the device directly perpendicular through the device’s center point.

• Do not apply force in a non-perpendicular direction to the device.
• Do not apply force at an angle or in a direction going across (parallel to) the device.
• Do not apply force on or near to the blue band of the device.
• Do not apply a force during the three-second calibration period before the application starts the force measurement.
• Do not move or shake the device during the force measurement.

Measuring Range of Motion

The ActivForce 2 device can also measure angular displacement for range of motion testing. While the device is calibrating, make sure that the device is being held still in the starting position.

• Do not rotate the ActivForce 2 device in multiple axes during a measurement.
• Do not move the ActivForce 2 device in multiple planes of motion during a measurement.
• Do not rotate the device during the brief calibration period before the application starts the range of motion measurement.

1/2

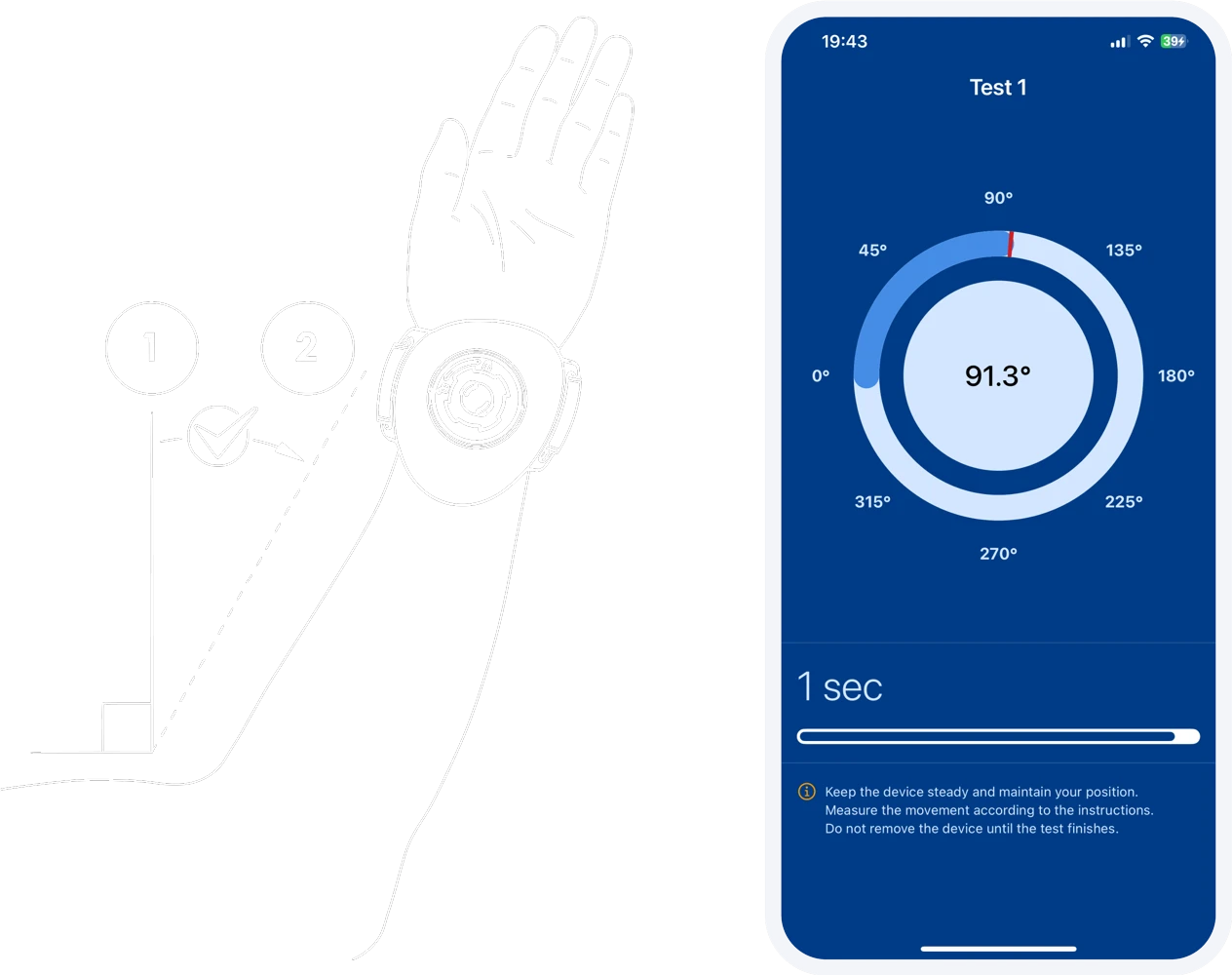

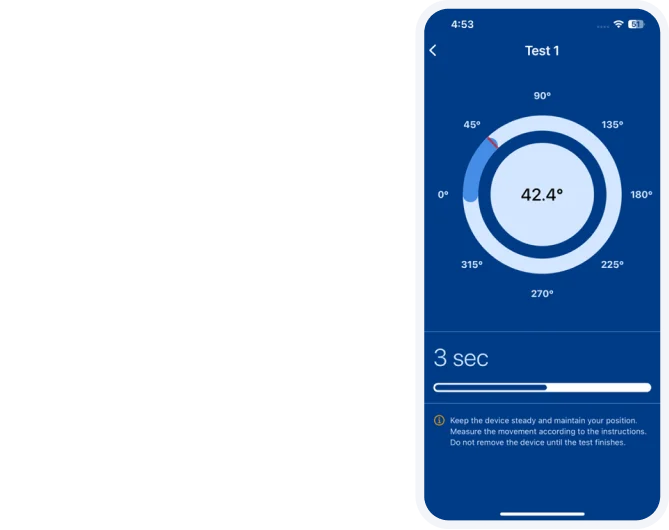

Place the device and/or subject into the starting position for test measurement and press the "Start Test" button.

After calibration, move the device from the starting position (Position 1) to the ending position (Position 2) through one plane of movement only (frontal, horizontal, or sagittal).

App Security

Sign in and out of the app or use the security features on your mobile device to ensure data privacy. Your data within the app is encrypted and accessible only with your username and password. Do NOT share your username or password with others. Always comply with local regulations on data privacy.

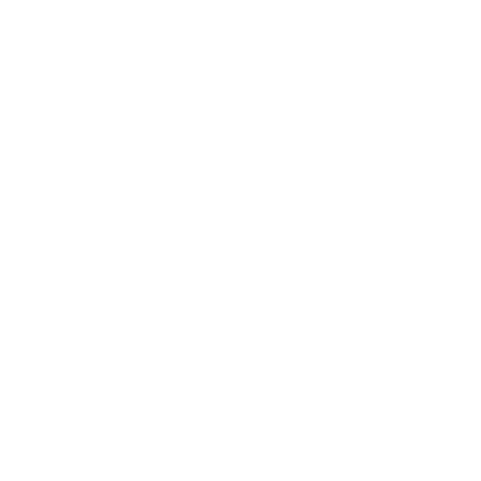

The Hand & Leg Straps

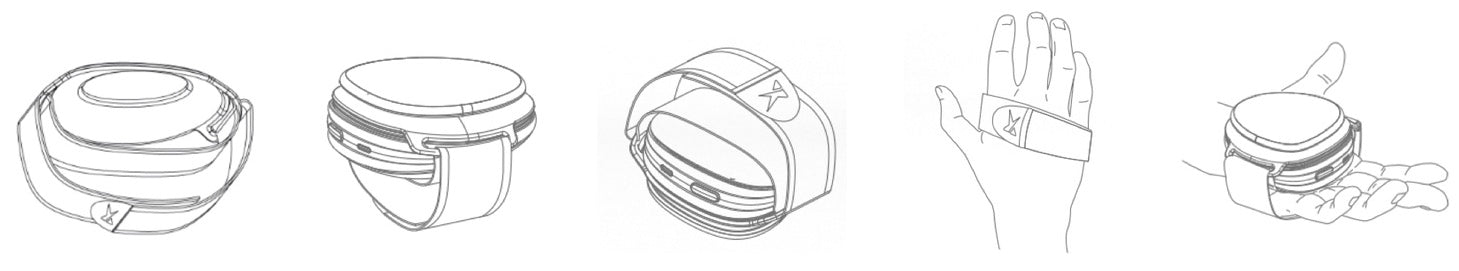

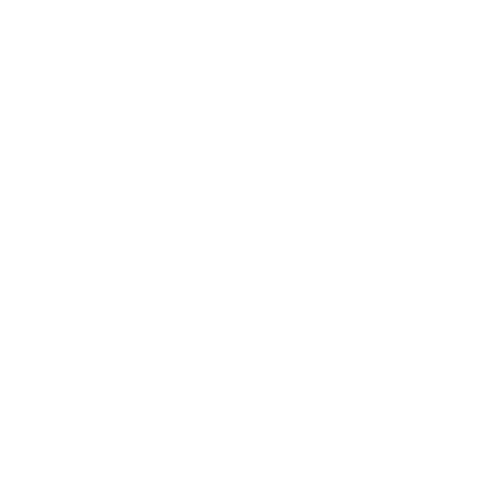

The Hand Strap

When using the Hand Strap attachment, ensure the strap is securely fixed in position. The Hand Strap may be used to secure the device to the user for strength and range of motion tests.

The Leg Strap

When using the Leg Strap attachment, ensure the strap is securely fixed in position. Use the Leg Strap to attach the device to the subject’s larger body parts for range of motion tests.

Threading the Hand and Leg Strap

Thread the strap through both loops with the logo face up and the plate face down. Place the device so that the locking mechanism fits into the hole in the plate. Slide your hand between the device and the strap. Pull the non-logo side across your hand. Pull the logo side over and secure the velcro. Use with desired attachment.

The Different Pads

1/3

Arched Pad

When using the Arched Pad attachment, ensure the attachment is securely attached in the locking mechanism. Use on hard or bony body parts for strength tests. The curve of the Arched Pad surface can be used to place the device against curved body parts.

Foam Insert, Silicone Cover and Arched Pad

Use of the Foam Insert and Silicone Cover is optional. For additional subject comfort, the Foam Insert can be attached to the Arched Pad by removing the adhesive backing and adhering it to the surface of the Arched Pad. The Silicone Cover can be secured in place using the grooves in the silicone to fit around the Arched Pad, providing a non-porous surface which can be easily cleaned and disinfected between uses.

To ensure accurate measurement and prevent the slippage of the device or Silicon Cover during measurement, force should only be applied in a direction perpendicular to the Pad surface.

Rounded Pad

When using the Rounded Pad attachment, ensure it is securely attached in the locking mechanism. Use this pad for all grip strength measurements and when bracing a test position against an immovable object.

The Immobilization Belt & Belt Loop Plate

When using the Belt Loop Plate immobilization belt attachments, keep the belt positioned perpendicular through the loops to reduce strain on the belt loops. The plate is designed to hold the belt in position during a test and it is not designed to withstand force from a test. No force should be applied on the loops for a more accurate measurement. Keep the straps parallel to the direction of applied force so the force is transmitted to the device. Ensure the belt is wrapped over the smooth side of the device and not over the attachment side of the device.

The Round Pad with the Belt Loop Plate is recommended when the device is being pressed into the inanimate object. The Belt Loop Plate may be used to guide the belt when the device is strapped to a fixed or immobile object.

1/2

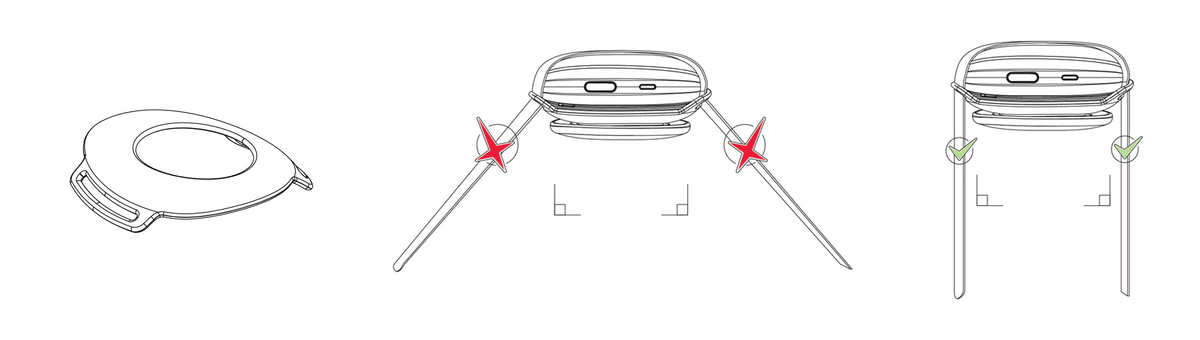

The Belt Loop Plate

Incorrect Strap Positioning and Correct Strap Positioning (parallel to direction of applied force).

Cleaning and Disinfecting the Device

To prevent the spread of infection and diseases, the ActivForce 2 device and pads should be disinfected between each use. The ActivForce 2 device’s external surfaces, including the rounded pad and the soft, arched pad silicon sleeve, can be hand wiped at room temperature with a soft cloth and a cleaning solution consisting of 70% isopropyl alcohol and water. After application, the cleaning solution should be allowed to evaporate completely.

Alternatively, a cleaning solution of 1% hypochlorite and water (10,000 ppm) can also be used to wipe the device, pads and silicon sleeves. Antibacterial hand sanitizing agents such as non-alcohol wipes or alcohol-based hand gels may also be used. Any residue from these agents should be wiped away using a soft, dry clean tissue or towel.

Replacing the Battery

The ActivForce 2 device comes with a standard AAA battery, which lasts between six to twelve months, depending on usage and environmental conditions. To replace the battery, follow these steps:

1/6

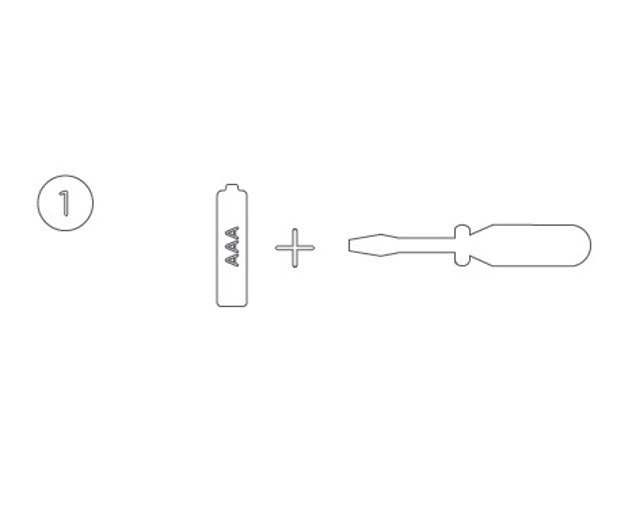

Obtain a new AAA battery and a medium size flat-head screwdriver.

Hold the ActivForce 2 device and the screwdriver with the pad attachment mechanism facing upwards. The Activforce logo should NOT be visible.

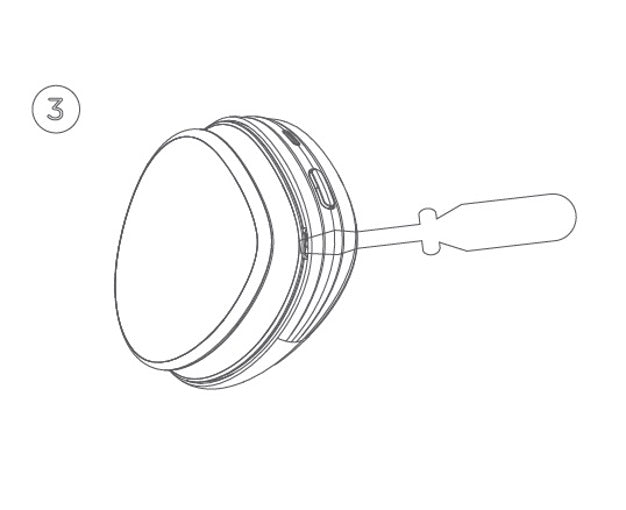

Insert the tip of the screwdriver in the small opening near the power button and gently turn the screwdriver until a click sound is heard and the bottom shell lid pops slightly open. This opens the first of five latches on the bottom lid.

Gently slide the screwdriver clockwise along the edge of the ActivForce 2 device, keeping the tip inside the gap between the lid and the device until it is about an inch and a half away from the original opening near the power button.

Stop sliding and gently turn the screwdriver until a CLICK sound is heard. Continue sliding the screwdriver around the edge with the tip inside the crevice, stopping every inch and a half to turn the screwdriver to pop open the latches of the bottom lid. The bottom lid can be removed when four to five of the latches are opened.

Once the lid is removed, you can replace the present AAA battery with a new one.

Once done replacing the battery, you can put the bottom lid back in place.

Warnings and Contraindications

The ActivForce 2 device should NOT BE USED when:

• The user and/or subject has a known allergy to silicon or plastic materials.
• The skin contacting the device or pad is damaged, irritated or otherwise not healthy.
• The device, attached pad, or device accessories are visibly damaged.
• The device is in an environment with high heat, humidity or pressure.
• The attached pad is not securely locked into position.

This information is provided for general informational purposes only and is not intended as, nor should it be considered a substitute for, professional medical advice. Do not use the information on this website for diagnosing or treating any medical or health condition. If you have or suspect you have a medical problem, promptly contact your professional healthcare provider. The information on this website is provided “as is” without any representations or warranties, express or implied.

Troubleshooting

If the ActivForce 2 device does not connect with the mobile companion application, ensure that the application has Bluetooth permissions on the mobile device. For some devices, the ActivForce companion application also requires Location permissions. If connectivity problems continue to occur, follow the instructions to replace the battery or make sure your mobile device is supported.

The ActivForce mobile application performs a tare operation automatically before each measurement, during the calibration phase. In addition, the device can also be manually tared. To tare the device, select “Calibrate your device” from the profile menu of the ActivForce mobile companion application.

To perform a hard reset of the device, remove the battery and re-insert it after 10 seconds. The battery and the removable pads are the only user-serviceable items.

For further assistance, complaints or comments, please contact support@activbody.com.

Safety

The ActivForce 2 device is certified to be compliant with all required safety standards and regulations, including electromagnetic compatibility and hazardous materials, for all territories it is distributed in. This includes these standards: IEC 60601-1 (Safety) and EN 60601-1-2 (EMC).

The ActivForce 2 device is not waterproof and should not be immersed in water or other liquids.

Similar to many electronic devices, the ActivForce 2 device contains flammable materials and should not be exposed to flames or other excessive heat sources.

Service Life

The ActivForce 2 device has a service life of at least 30,000 cycles, or force measurements.

Disposal

In the European Union, the symbol below indicates that the product should not be disposed of with other household waste. Batteries should be discarded separately, and the device should be deposited at an appropriate facility to enable recycling. Please separate these items from other types of waste and recycle them responsibly, following your local government’s disposal guidelines.

ActivForce 2 Device Specifications

Device Dimensions

• Weight: (with AAA battery) 4.8 oz / 137 g
• Length: 3.7 in / 9.5 cm
• Width: 3.1 in / 7.8 cm
• Height: 1.3 in / 3.3 cm
• Volume: (approximate) 8.5 in³ / 139 cm³

Device Functional Specifications

• Force Measurement Range: 0 to 200 lb / 0 to 90 kg
• Force Measurement Accuracy: ± (1.4 lb + 5% of the applied force)
• Range of Motion Accuracy: ±1° for angles measured from 0° to 33°, ±3% of the measured angle when > 33°
• System Requirements: Android 8 or higher, iOS 16 or higher
• Connectivity: Bluetooth 4.1
• Operating Distance: Up to 7 ft / 2 m from mobile device
• Battery: 1 AAA battery
• Battery Life: Approximately 6 months, may vary with usage or environmental factors
• Operating Temperature: Range 32° to 95° F / 0° to 35° C
• Storage Temperature Range: -13° to 122° F / -25° to 50° C
• Operating Humidity Range: 15% to 93% relative humidity

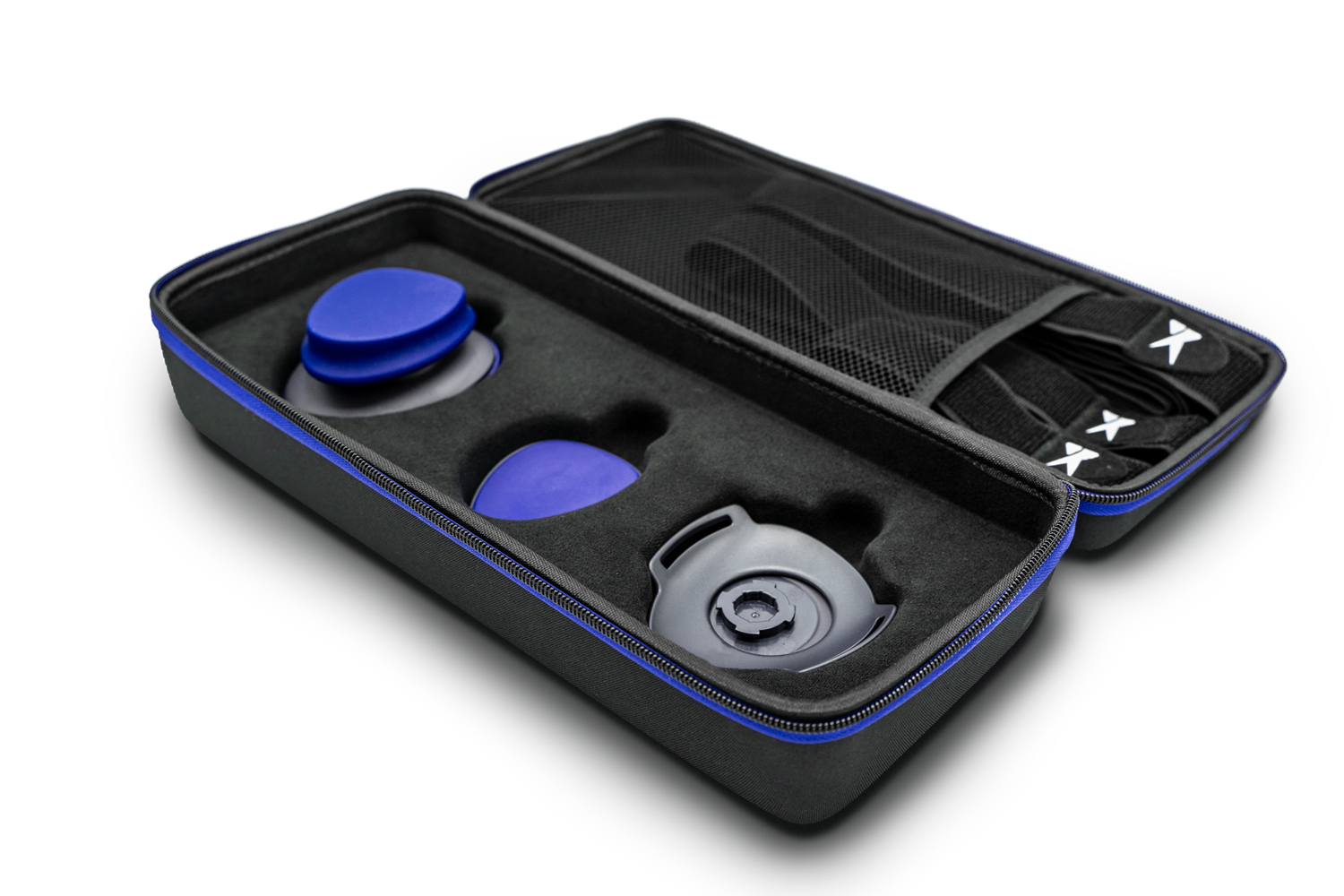

Case Dimensions

• Weight: 29.5 oz / 835 g
• Length: 14.2 in / 36.0 cm
• Width: 6 in / 15.2 cm
• Height: 3.94 in / 10.0 cm
• Volume: (approximate) 334 in³ / 5,472 cm³

Accessories Dimensions

• Hand Strap Length: 13.5 in / 34.3 cm
• Hand Strap Width: 1.5 in / 3.8 cm
• Leg Strap Length: 31.5 in / 80.0 cm
• Leg Strap Width: 1.5 in / 3.8 cm
• Belt Length: 97.6 in / 247.9 cm

Belt Width: 1.5 in / 3.81 cm
